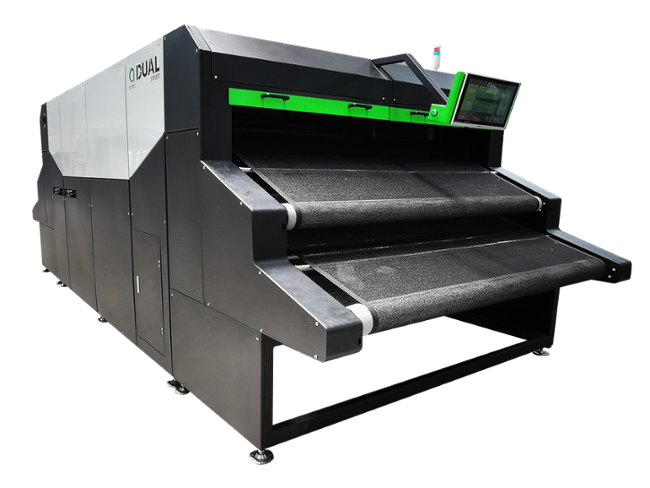

Dual Logosmart

       Dual_Smart sm

DUAL Smart Brochure

The world's highest production and energy efficient textile drying machine.

The Dual Smart dryer is the most technically advanced dryer on the market, curing digital inks in high volumes with such a small footprint.  With ingenious features that will increase print quality for all textile ink systems and fabrics including transfers.

The Dual Smart is a double belt conveyor dryer with separate heat chambers, airflow and exhaust systems for the top and bottom conveyor belts.



Two dryers, one footprint.

The new Dual Smart reduces energy usage and downtime and is more intuitive with the printer.

The Adelco Dual Smart has a unique built-in extraction system on the infeed and outfeed for a cleaner working environment together with independent exhaust extraction from each conveyor to maximize the curing efficiency for heavily water-laden prints in both digital and conventional printing requirements

DualSmart os

Independent Burners

These independent burners give the flexibility to run two completely separate print runs, be it screen or digital, at the same time.  Very much like running two dryers side by side, but saving you space and time.




Ergonomically Position & Fully Adjustable HMI Control Interface

With an updated HMI control interface that is fully adjustable, and retractable for easy loading access.

This control panel is the gateway to a host of useful information, including:

  • Curing time and temperature history report.
  • On-screen temperature mapping (via optional temp mapping device).
  • On-screen fault finding and service instruction videos.


Belts & Rollers

The Dual Smart comes with the most durable and strongest belts on the market. They are also self-tensioning and self-aligning, making this one of the most reliable conveyor belts.

Our ground rubber-crowned conveyor rollers ensure reliable belt tracking, prevent slipping & prolongs conveyor life.

Dual Smart side

Full features and advantages of the Adelco Dual Smart

  • Two conveyor dryers in a single footprint
  • Digital touchscreen Interface
  • Independent burners, airflow, and temperature control over each conveyor level
  • Integrated vacuum hold down
  • On Screen Gas pressure display
  • Modular 3 meter and 4 meter oven lengths
  • Self-tensioning, self-aligning conveyor belts.
  • Ergonomically position control panel interface, retractable for easy loading access.
  • Easy Access Air filter cleaning.
  • Easy Access Infeed and outfeed extraction filter cleaning
  • Exhaust residue trap
  • Updated quick access UV flame detection system.
  • Rubber Covered Rollers enabling Nonslip conveyor.
  • Built in infeed/outfeed fume extraction system.
  • Curing time and temperature history report.
  • On screen Temperature mapping (via optional temp mapping device).
  • On screen Fault finding and service instruction videos.
  • Pit stop internal cleaning.
  • Easy to remove, tool free external panels.



Specs

Touch screen 15" HDMI Ergonomically position control panel interface, retractable for easy loading access
Electrical supply 3 Phase 220V/380V/415V
Maximum electrical consumption 7KW
Maximum BTU required 250,000 btu / 7 meters cubed per hour (the heat capacity of our burners exceed the maximum supply used to ensure the most efficient and effective utilisation of heat)
Average BTU Consumption 117,000 btu / 3.3 meters cubed per hour (calculated with a full belt of printed shirts, in production)
Time from ambient temp to 160°C (320°F) Approximately 15 minutes
Production - DTG Print (Black Shirts) @ 3 mins - 520 per hour    @ 8 mins - 270 per hour
Production - Screen Print @ 1 min 2160 per hour
Max Airflow 8,500 CFM Air Speed: 26 m/s RPM: 1230
Exhaust Diameter (12”BSP)300m











wh_adelco

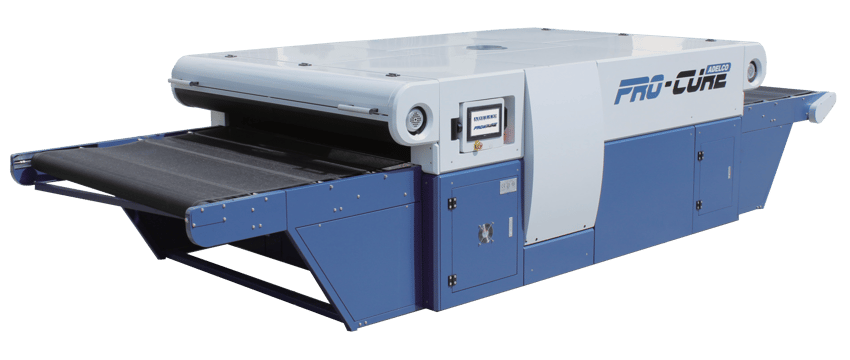

Pro-Cure black



PRO-CURE_image

The most technically advanced and most efficient garment conveyor dryer on the market

The new Adelco Pro-Cure conveyor dryer range is available in five belt widths and five oven lengths, so you can customize your dryer to suit your individual curing requirements, for all digital and conventional textile ink systems.  The Pro-Cure is modular in design, making it the perfect option to add additional ovens to the dryer as your business grows.

Designed and specified for advanced textile curing, the Pro-Cure tunnel dryer has an efficient airflow and exhaust system, incorporating oven feed and exit extraction hoods to provide a cleaner working environment.  As well as incorporating many of the popular features found in the Adelco Dual Dryer and our other drying machines.





wh_adelco



dc+



digi cure + web trans hires-1-1

A small drying machine with big dryer features and performance

The Adelco Digi-Cure + is an updated version of the much loved and highly regarded, small but mighty Digi-Cure textile conveyor dryer.  This solution is aimed at providing great value with excellent curing ability for all textile ink systems, both Digital and Conventional as well as Transfers.

The Digi-Cure + conveyor dryer is 2.6 meters long with a 90cm in-feed and 90cm out-feed, with a 80cm belt width.




    "Ultimately, no matter how advanced the hardware or software systems in your production shop are, your max output still comes down to how many shirts you cure an hour."
