TMEZ-SC1501

ANYONE CAN BE AN EMBROIDERY SPECIALIST

undefined-Apr-25-2023-06-26-36-6618-PM-1

No More Tension Knobs!


iTM-2  The TMEZ from Tajima is the world's first machine with automatic thread tension adjustment. i-TM technology eliminates the need for manual tension adjustment. The presser foot automatically detects fabric thickness and automatically evaluates the upcoming stitch type, then adjusts according to stitch length, stitch direction, type of stitch, and machine speed.



Download Brochure

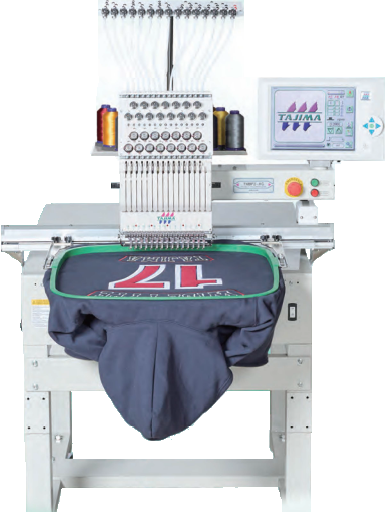

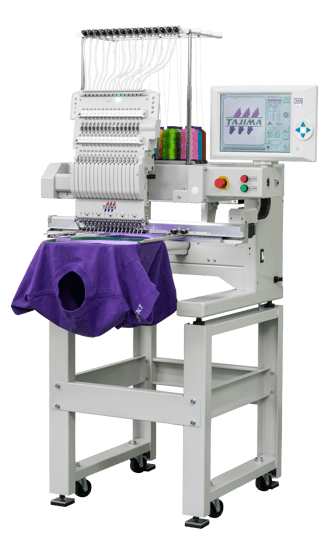

tmez Single head







Key Features OF TMEZ

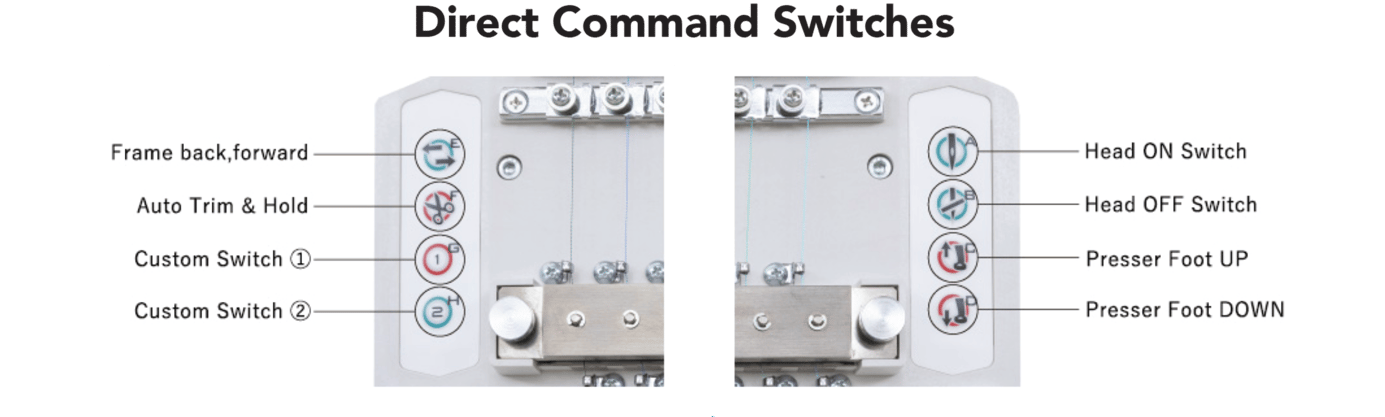

DCP ITM-1
DCP ITM-3

DCP ITM-2
DCP ITM-4

What is“ fluttering”?
“Fluttering” occurs when the material is lifted up during embroidery which causes skipped stitches,
miss-trimming, and reduced quality stitching.
The DCP (Digitally Controlled Presser foot) can reduce fabric fluttering that occurs during embroidery.
 It is especially effective when working with thick fabric, very thin fabric, and folds of material.











LEARN TO DIGITIZE

You can attend online classes hosted by Hirsch digitizing specialists to become an expert at your Tajima software.



Standard Features of TMEZ

Slim Cylinder

Slim Cylinder makes it possible to embroider on smaller products such as socks, gloves, and pockets.

slim cylinder

Versatile Cap Driver

The cap driver incorporates a lower shaft and a third locking pin to stabilize the cap during embroidery to enhance quality, and run at higher speeds.

small gap

Design Position Adjustment

Design Position Adjustment feature allows a design to follow any reference line of your choice ensuring perfect alignment every time.



DPA

Thread Locking

The Thread Locking System secures the thread after a trim to help prevent the thread pulling out during needle startup.



thread locking system













Trimmed Needle Plate





A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.













LED Position Marker





A red dot projected above the needle hole helps identify the actual embroidery area when tracing the design before stitching.













LED Needle Base Light





The LED Needle Base Light illuminates the needle area and provides the operator a better view of the item being embroidered.













Steeper Head Tilt





The Steeper Tilt Head angles the bill of a cap more which allows stitching closer to the bill and increases the embroidery area.

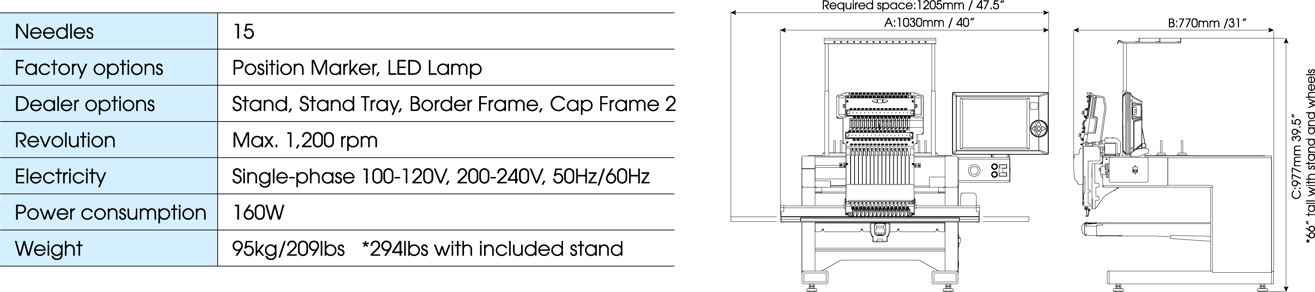

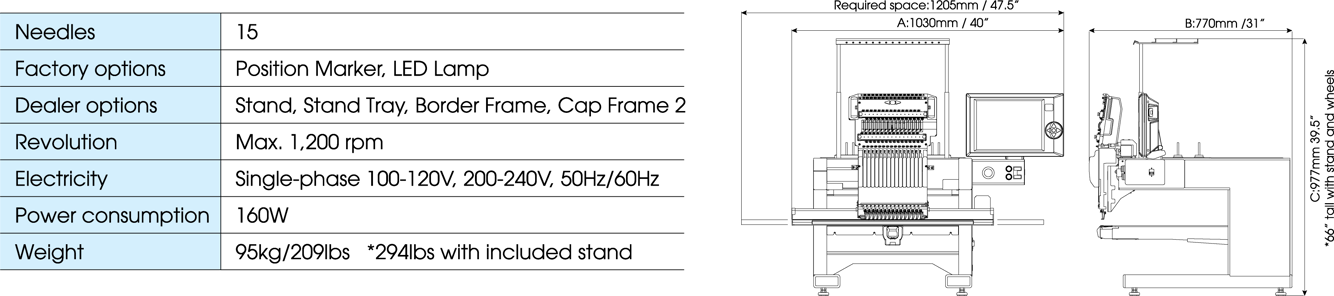

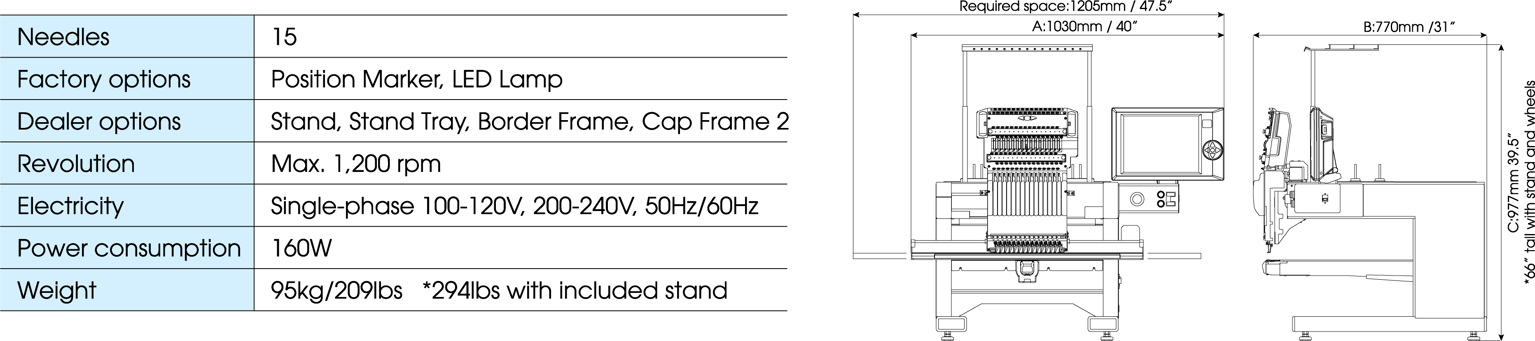

TMEZ SPECIFICATIONS

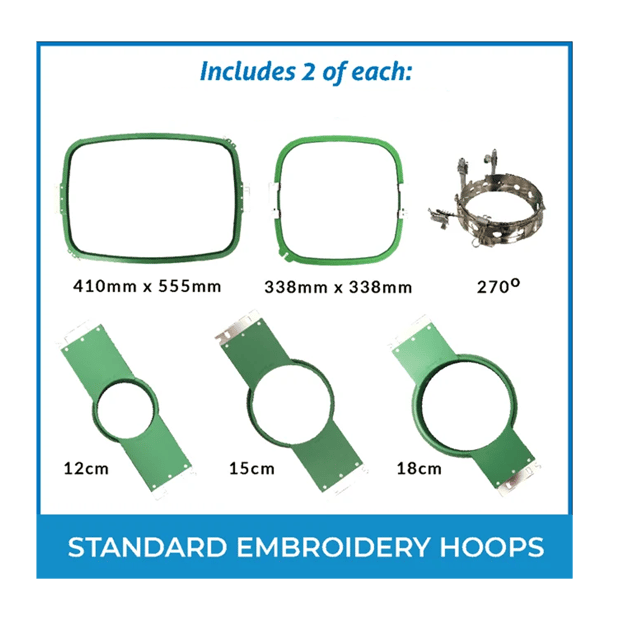

Asset 1-Apr-25-2023-07-37-22-4733-PMframes



IS the TMEZ 1501 for you?

Enter your info below and a Hirsch sales representative will contact you about adding Tajima TMEZ-1501 to your business.
