- Easy Operation

- Industrial Performance

- Save Money with Bulk ink


GTX Pro-B Brochure
Connect with a Hirsch sales
specialist to get started.

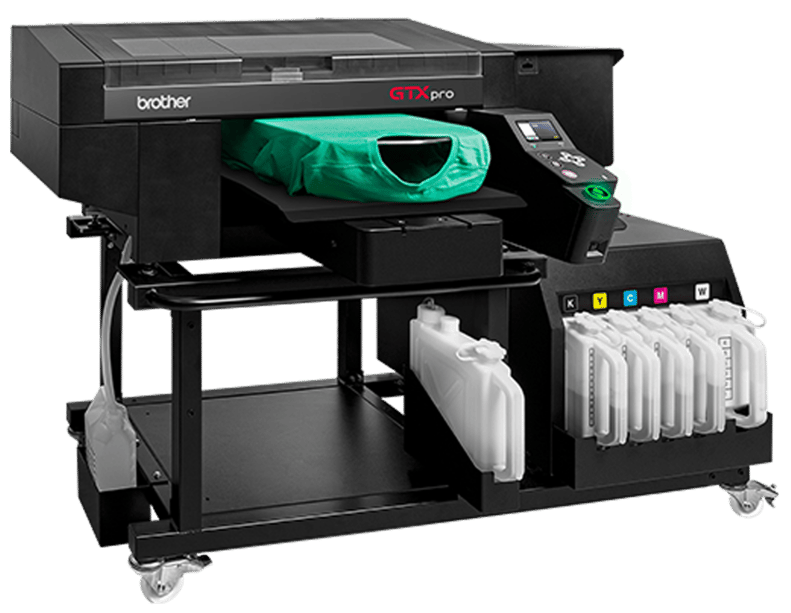

GTX pro-b 2-2

Ink Circulation System

Internal agitation and circulation system keeps the ink in suspension and in a constant state of readiness.

Industrial Maintenance Station

The wet-capped maintenance station keeps heads clean and primed for printing, saving you valuable time.

   Bulk Ink

Innobella Textile eco-friendly inks are available in 1.8 liter, and 18 liter sizes.  The price range per cc is $0.12 - $0.22 depending on which size  and how much you purchase.

   Two Year Warranty*

With Brother's 2 year warranty you can focus more of your time and money on growing your business.

   Dual Height Sensors

With Brother's 2 year warranty you can focus more of your time and money on growing your business.

   Brother Print Heads

Brother manufactures their own print heads, and has engineered them to include internal circulation which reduces waste, and increases speed.

Have you thought about expanding

your DTG business?

mock layout

Contact Hirsch Solutions for all your growing needs.

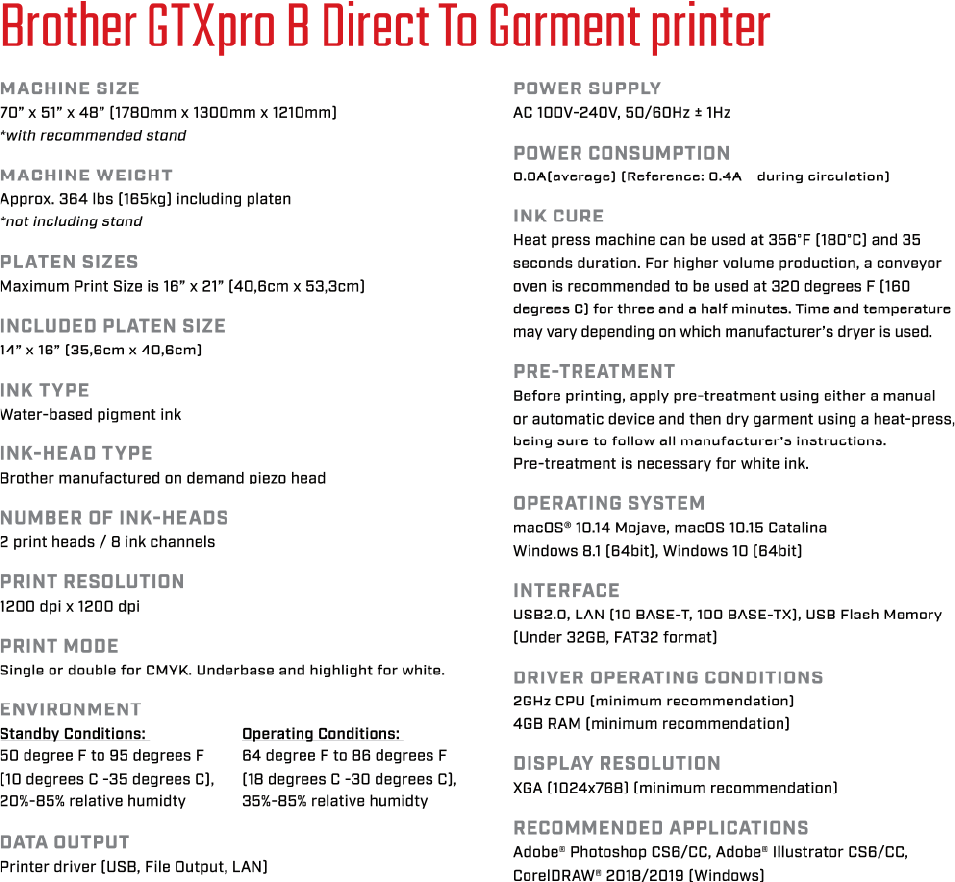

Printing Method

Direct inkjet garment printer


Machine Size

70”(W) x 51”(D) x 48”(H) (1780mm x 1300mm x 1210mm) With recommended stand

GTXpro B dimensions

Machine Weight

Approx. 364 lbs. (165kg) including platen (not including stand)


Adult Platen image


Included Adult Platen

14” x 16” (35,6cm x 40,6cm)

Maximum Print Size is
16” x 21” / 40,6cm x 53,3cm


Ink Delivery

Advanced Ink System

Ink Delivery Advanced Ink logo

Ink Type

Water-based pigment ink

innobella TEXTILE logo CMYKW Image

Number of Print Heads

2 Print heads: 1 for White Inks, 1 for CMYK Inks

GTXpro B dimensions


Environmental Conditions Image

Data output

USB, File Output, LAN


Power supply

AC 100V-240V, 50/60Hz ± 1Hz


Power consumption

0.8A(average) (Reference: 0.4A – during circulation)


Ink cure

Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.

Rolling Printer and shirt press


Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.





macOS® Mojave 10.4 to macOS Big Sur 11.4, Windows 8.1 (64-bit), Windows 10 (64-bit)

windows and mac logos


USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T),
USB Flash Memory(Under 32GB, FAT32 format)


Driver operating conditions

2GHz CPU (minimum recommendation)


Display resolution

XGA(1024x768) (minimum recommendation)



Bring your prints to the Pro Level

  The GTXPro Direct to Garment printer puts more features, more flexibility, and more capabilities into your bag of printing and decorating tricks. It works harder for you, so you can work harder on growing your business and tapping into new markets.

right-choice-speed  Print with Speed

  The quicker you get products to market, the sooner you can start turning a profit. The GTX Pro gives you the power to produce prints faster than ever before, giving you a distinct competitive advantage.

right-choice-speed  Print with Precision

  Never sacrifice print quality for output speed. With a print resolution of 1200 x 1200 dpi combined with cutting-edge Innobella inks, your designs can incorporate the entire color spectrum and even minute details will print with fantastic clarity.

right-choice-speed  Print in One Pass

  With the white ink channels stacked right behind the CMYK channels, you can print almost anything in a single pass.

right-choice-speed   Print with Simplicity

  Being easy to use and maintain is one of the most important features of the GTX Pro. The improved wet capping station minimizes clogged nozzles and the white ink circulation system keeps the system primed and ready to print.

right-choice-speed   Print Practically Anywhere

  The GTX Pro is more than a t-shirt printer. The large gap between the print head and the substrate means you can easily print over seams, across zippers and on top of pockets.

right-choice-speed   Print Larger

  The GTX Pro has the largest print area of any Brother DTG printer ever. With a maximum print size of 16” x 21”, your designs can be bigger and bolder than ever. Extra thick items are no problem thanks to the adjustable platen height system.

right-choice-speed   Print Safely

  The  Innobella Textile inks used by the GTX Pro are water-based pigment inks that are Okeo-Tex Eco-Pass certified and CPSIA compliant. The innovative packaging uses less plastic thanks to the new replaceable pouches so there is less impact on the environment.

right-choice-speed   Print with Confidence

  When you print and fully cure an item using the GTX Pro and Innobella Inks, you can be sure of its durability and washability. That’s because Innobella Textile inks have scored 4.0 or higher on AATCC wash tests.

Print with Speed

High-speed print mode generates and increase in print speed of up to 20% compared to standard print mode.

Print up to 42 dark garments per hour (11” × 11” design at 1200 × 1200 DPI in CMYK + white in high-speed print mode). Print up to 57 light garments per hour (11” × 11” design as 1200 × 1200 DPI in standard CMYK-only mode). Examples of prints on light and dark colored garments.


IS the GTX Pro Bulk for you?

Enter your info below and a Hirsch sales representative will contact you about adding the Brother GTX Pro Bulk to your DTG business.
