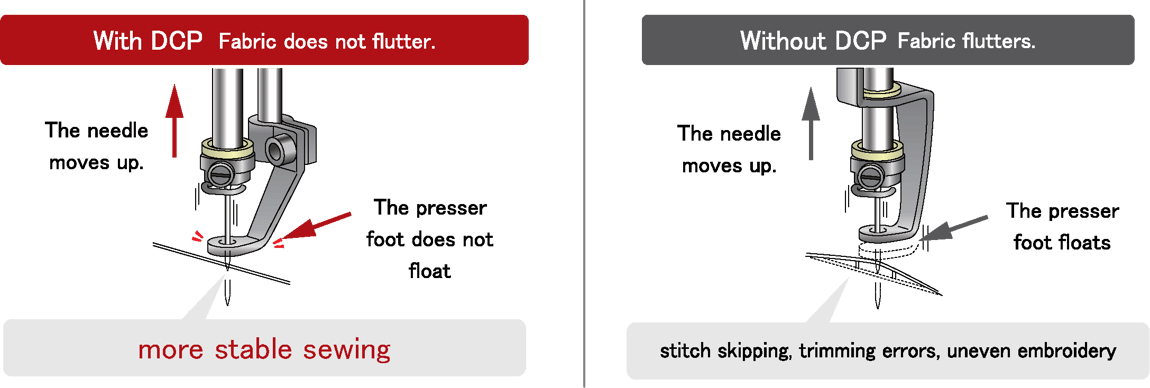

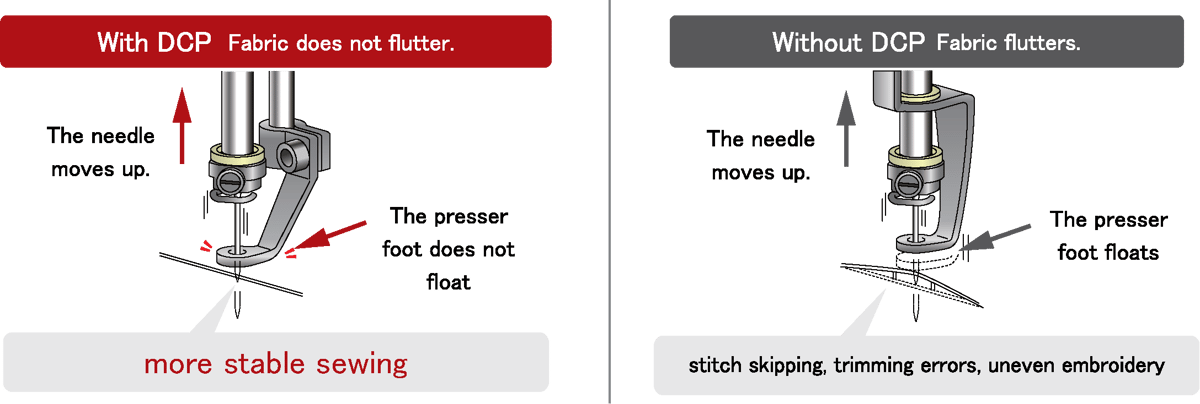

The next-generation Tajima features a digitally-controlled presser foot (DCP), network access, and a slim cylinder design for easier access. The reinforced Wide Cap Frame has enhanced the embroidery stability whereby increasing the rotational speed to 1000rpm. TMBR2-sc is also equipped with the largest touchscreen controls available on the market!

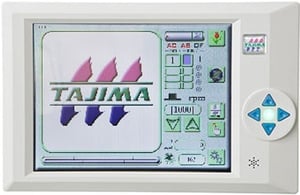

Equipped with the industry’s largest touchscreen
The large-scale 12.1-inch operation panel is equipped with various convenient icons and multilingual displays. A touch panel allows more intuitive operation.
Greatly increased memory capacity!
Maximum Design Storage - 650 designs
Maximum Stitch Count - 40 million
Slim Cylinder makes it possible to embroider on smaller products such as socks, gloves, and pockets.
The cap driver incorporates a lower shaft and a third locking pin to stabilize the cap during embroidery to enhance quality, and run at higher speeds.
Design Position Adjustment
Design Position Adjustment feature allows a design to follow any reference line of your choice ensuring perfect alignment every time.
The Thread Locking System secures the thread after a trim to help prevent the thread pulling out during needle startup.
Trimmed Needle Plate
A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.
LED Position Marker
A red dot projected above the needle hole helps identify the actual embroidery area when tracing the design before stitching.
LED Needle Base Light
The LED Needle Base Light illuminates the needle area and provides the operator a better view of the item being embroidered.
Steeper Head Tilt
The Steeper Tilt Head angles the bill of a cap more which allows stitching closer to the bill and increases the embroidery area.
