High Volume Embroidery

Explore the TMAR series of 12+ Head Machines

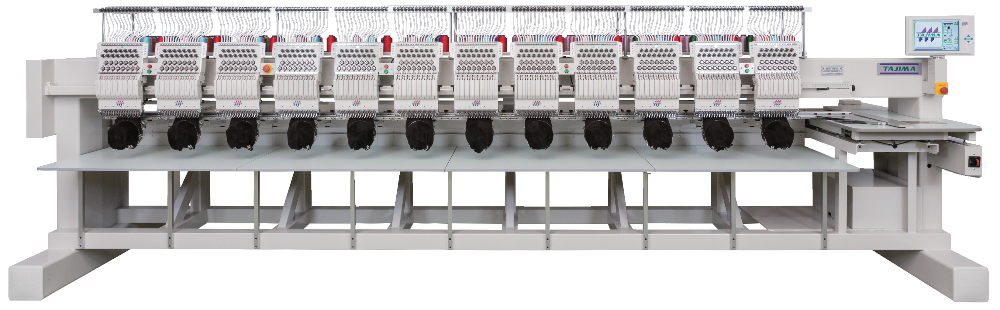

tmar-vc-1512C-1

TMAR-VC1512 Series



If you are doing high-volume embroidery, the Tajima TMAR-VC (TMAR-V1512C) is a state-of-the-art multi-head commercial embroidery machine that delivers consistent, trouble-free sewing for maximum output. With its digitally controlled presser foot that adjusts for the thickness of the fabric being sewn, you are assured higher quality, fewer thread breaks, and overall smoother performance than you have ever experienced. The Tajima TMAR-VC (TMAR-V1512C) is the perfect machine for specialty fabrics and applications such as caps and three-dimensional foam.



Model Needles Multi
color head
Head interval Embroidery field (D×W) Overall Width Depth Height
Border Frame Wide Cap Frame Semi-wide
Cap Frame
Tubular Frame
Tubular Frame spec. 12/15 12 360mm
14.1inch
450×360mm
17.7×14.1inch
75×360mm
2.9×14.1inch
83×180mm
3.2×7.0inch
439×279mm
17.2×10.9inch
5,660mm
222.8inch
1,480mm
58.2inch
1,705mm
67.1inch
Border frame spec. 12/15 12 360mm
14.1inch
450×360mm
17.7×14.1inch
75×360mm
2.9×14.1inch
83×180mm
3.2×7.0inch
439×279mm
17.2×10.9inch
5,820mm
229.1inch
1,780mm
70inch
1705mm
67.1inch

*Power supply
 3-phase 200-240 / 350 / 380 / 400 / 415 / 440V 50/60Hz
*Contact us for other specifications and more details.
*The actual embroidery field and embroidery speed may vary depending on the items being produced, the machine model, and the embroidering conditions.
*The TMAR-KC is configured with 2 to 8 heads, the TMAR-VC with 12 heads.



DIRECT COMMAND SWITCHES



DIGITALLY CONTROLLED PRESSOR FOOT (DCP) REDUCES FLUTTERING

A digitally controlled presser foot that responds to changes in fabric thickness stitch by stitch. Accurate and beautiful embroidery from thin to 3D embroidery with no settings required. The machine reduces the fluttering of the fabric at the start of sewing and during thread trimming, minimizing problems such as skip stitch and thread trimming failure.



What is “ fluttering”?
“Fluttering” occurs when the material is lifted up during embroidery which causes skipped stitches, miss-trimming, and reduced quality stitching.
The DCP can be adjusted randomly according to the material thickness on the operation panel. It simplifies the mechanical process that was previously required and time consuming.

※DCP stands for Digitally Controlled Presser foot.

EQUIPPED WITH THE INDUSTRY’S LARGEST TOUCHSCREEN

The large-scale 12.1-inch operation panel is equipped with various convenient icons and multilingual displays




Greatly increased memory capacity!

• Maximum Design Storage - 200 designs
• Maximum Stitch Count - 2 million






Slim Cylinder

Slim Cylinder makes it possible to embroider on smaller products such as socks, gloves, and pockets.







Cap Driver

The cap driver incorporates a lower shaft and a third locking pin to stabilize the cap during embroidery to enhance quality, and run at higher speeds.






Thread Locking

The Thread Locking System secures the thread after a trim to help prevent the thread pulling out during needle startup.





Trimmed Needle Plate

A shorter distance between the needle hole and the edge of the trimmed needle plate offers an increased embroidery area on many items.





Thread Break Detection

A sensor monitors the thread movement while stitching. If the tension on the upper or lower thread is broken the machine stops stitching relaying an error on the controller.





LED Needle Base Light

The LED Needle Base Light illuminates the needle area and provides the operator a better view of the item being embroidered.





Steeper Head Tilt

The Steeper Tilt Head angles the bill of a cap more which allows stitching closer to the bill and increases the embroidery area.




The most advanced and reliable high-tech function and mechanisms
User-friendly quiet operation• The latest noise reduction developments help create a quiet and pleasant working environment for operations
Memory• The standard memory is 2,000,000 stitches and able to store a max of 200 designs
Condition memory• Stitch conditions can be memorized together with embroidery data. The saved stitch conditions are applicable to job repeat or
other machines.
Scale up/down. Rotate• You can scale your designs down to 50% or up to 200% in increments of 1%, and rotate in 1- degree increments.
Automatic repeat• A design can be automatically repeated up to 99 times both vertically and horizontally.
Design editing• Modify, insert or delete your embroidery design data stitch by stitch.
Satin stitch reduction and expansion• Increase or decrease actual stitch length according to the stitch length in a design.
Clean-up function• A very helpful function to automatically remove small stitches to prevent thread breakage as well as to improve production efficiency.
Frame back / forward• Frame back/forward is available in units of 1, 2 or 3 stitches, stop codes or designated stitch count.
Productivity• Production efficiency has been improved by decreasing downtime caused by color changes, thread trimming etc.
Origin return• The frame can be either manually or automatically returned to the design starting point (while the machine is stopped), even if the end point
is different from the starting point.
Trace function• Confirm whether or not a design will fit in a frame before embroidery.
Automatic offset / manual offset• Facilitate applique fabric placement and frame changing.
Automatic upper/under thread trimming device ATH• Automatically operates to trim threads by commands in a design data.
Power failure control measures• You can continue to operate the machine even after an unexpected power failure during embroidery without experiencing
a production error due to design displacement.


Additional Features

Auto Color Change• Auto needle bar change on color changes within the designs.

Large Stitch Memory• Depending on the model purchased X21 controller on TMB and MX models come with 2,000,000 stitch capacity and TMEX touch
panel controller has capacity of 4,000,000.

Auto Thread Break Sensor• Machine will automatically sense any change in tension with upper thread break or snag.

Auto Thread Trim
• Trimmer within needle plate is auto within all trims within a design

Barcode Ready
• All machine equipped with multiple USB ports for easy use of any USB style barcode reader

Color LCD Panel
• Color LCD panel allows for easy navigation

Cubical Frame Design
• A large 14.2" x 19.7" sewing field lets Tajima Embroidery Machines take on the big jobs! Full backs and fronts are no problem.

High Speed Rotary Hook
• The rotary hook ensures stable stitching at high production speeds; thereby minimizing thread breaks while balanced thread tension.
LAN Enabled• Tajima Embroidery Machines are LAN enabled to connect with your network. Easily transmit designs and improve workflow.

Large Sewing Field
• A large 14.2" x 19.7" sewing field lets Tajima Embroidery Machines take on the big jobs. Full backs and fronts are no problem.

Quick Frame Changeover
• Easily switch from caps to tubular to flats to cylinder sewing.

Safety Beam Sensor
• An invisible beam of light surrounds the work area of the machine while sewing. Breaking the beam stops the machine

Picker-Free Embroidery
• Picker has been eliminated to cut down on bird's nests ensuring deduction in product loss

USB Enabled
• Data can be transferred to the controller via USB Flash Drive or LAN machine connection.

DCP
• The digitally controlled presserfoot eliminates stitch skipping, trimming errors, and uneven embroidery.
