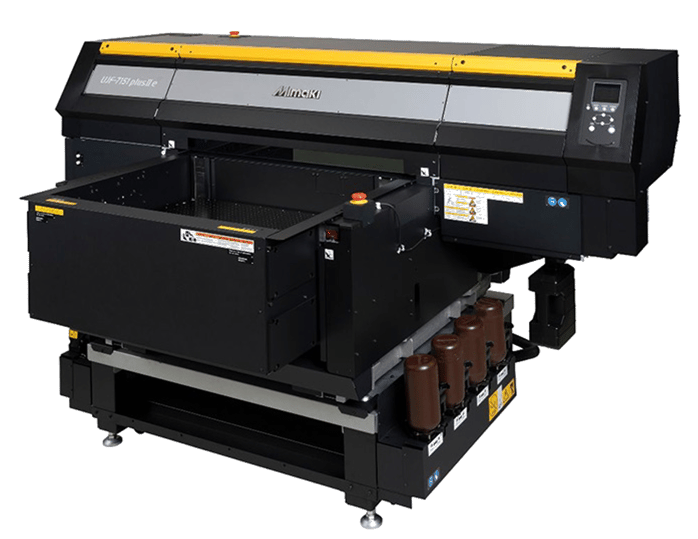

Mimaki UJF-7151

Add Texture. Add Depth. Add Value.

-Unlock new Dimensions in industrial printing. The UJF-7151 plusII e is a high-performance model that retains the high-quality printing up to 1800 dpi, highly precise positioning, heavy media compatibility, and stability evaluated in the previous model, the UJF-7151 plusII. It further pursues enhanced “Print Higher” and “Print Deeper” capabilities, along with improved productivity and reduced running costs.

Product outlines

High-Quality, High-Precision Printing: 1800 dpi maximum
High Productivity: Max. 8.0m²/h* productivity
*Print conditions：4C+4C 600 × 600 dpi; 6 Pass
Optional 8-head/staggered arrangements
Mimaki's technology for realizing stable operation
2.5D Embossed Printing: Up to 5 mm (0.2") Thick

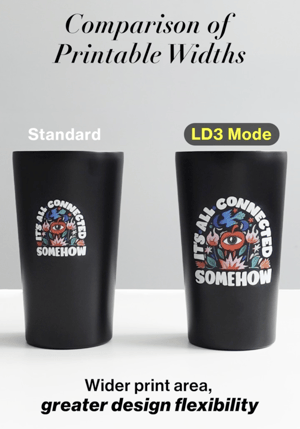

LD3 Mode: Up to 10 mm (0.4") height differences
High-Speed Primer Function: Achieves Approx. 3.7 times the Previous Speed
Ink Saving Function: Reduce Ink Cosumption with Just 2 Clicks

DOWNLOAD BROCHURE

Specifications

Printhead	8 on-demand piezo heads in a staggered array
Print Resolutions	600 dpi / 900 dpi / 1200 dpi / 1800 dpi
Print Speed (4 Color Mode)	86.1 ft²/hr (8 m²/hr)
Maximum Print Area	28″ x 20.0″ (710 × 510 mm)
Maximum media size	28.7″ x 20.9 in” (730 × 530 mm) or less
Maximum Media Thickness	up to 6.02″ (153 mm)
Maximum Media Weight	66.0 lbs. (30.0 kg)
Ink Type	UV curable ink: LH-100 / ELH-100 / LUS-120 / ELS-120 / LUS-350 / MUH-100-Si / PR-200
Interface	Ethernet 1000BASE-T, USB2.0 Hi-speed
Power Supply	Single phase AC100-120/200-240V±10％, 50/60Hz±1Hz
Power Consumption	AC100V: 1.3kW or less
Operational Environment	Temperature 59° – 86° F (15-30° C) Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H)	87″ x 62″ x 51″ (220.3 x 158 x 129.3 cm)
Weight	728 lbs. (330 kg)
Certifications	VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, EAC, RCM

Production Example of UJF-7151 plusII e


3D lenticular	Nameplate (Full-color)	Nameplate (Etching)	Card


Switch	Novelty	Flip wallet smartphone case	Seat name card


Photo album	Molded face sign	Wedding board	Water bottle
