Multiply your profit
Multi head Key Features
With a diverse line of robust multi head embroidery machine options, Tajima has a machine to solve every problem big or small.
Get a QuoteWant more guidance?
You may be feeling overwhelmed at the choices but never fear our sales team is here to help! Fill out your information and what you are interested in learning more about!
Slim Cylinder
The slim cylinder makes it possible to embroider on smaller objects such as socks, gloves, and pockets.
Versatile Cap Driver
The new cap driver incorporates a lower shaft and a third locking pin to stabilize the cap while running to enhance quality, and run at higher speeds.
Steep Head Tilt
The steeper head angles the bill of any cap and allows for placement closer to the brim increasing the embroidery area.
Thread Break Detection
A sensor monitors the thread movement while stitching. If the tension on the upper or lower thread is broken the machine stops stitching relaying an error on the controller.
Safety Beam Sensor
A beam surrounds the work area while machine is in motion. If the plane is broken the machine will immediately stop.
Thread Locking System
The thread locking system secures the thread after a trim to prevent the thread pulling out during start.
LED Needle Base Light
LED needle base light illuminates the needle area and enables the operator a better view of the item being embroidered.
Trimmed Needle Plate
A shorter needle plate offers an increased embroidery area on many items such as small sleeves or caps.
Standard Multi
-
Auto Color Change
As design dictates the needle bar will automatically change based on the needle assigned
-
Auto Thread Trim
Trimmer exists within the needle plate to trim where needed within a design and at color changes.
-
Barcode Ready
Multiple USB ports allow for open space for a barcode reader to be used when networking allows.
-
High Speed Rotary Hook
Hook rotates around bobbin to accommodate for the higher speed capabilities of the machine.
head features
-
Quick Changeover
Thumb screws are in place to allow for easy change over from tubular to cap as well as moving to a larger field.
-
Spiral Tubes
Plastic spiral tubes allow thread to keep separated to alleviate knotting or twisting.
-
Lan Enabled
Each machine is ready for network connection with Tajima DG16 by Pulse software.
Standard vs Stretch
Head interval refers to the space from one head to the next. Standard machines refer to machines with 360mm (14") head interval and stretch for machine that have a 500mm (19.6") head interval. A larger interval makes is easier for larger, bulky products to fit comfortably between heads and a larger x-axis embroidery field.
360 MM Head Interval
The standard 360 MM head interval machines are ideal for producing a standard mix of products that are not limited to caps, shirts, sweatshirts, jacket backs, and infinitely more.
500 MM Head Interval
The 500mm head interval provides more space between heads which makes it easier to accommodate larger, bulky products such as sweatshirts, jackets, blankets, etc.. This setup is ideal for customers who do a larger percentage of these types of items and can accommodate the larger machine size.
TMEZ-KC
Tajima's smartest embroidery machine is now available in multi-head configurations
Get a QuoteTMEZ the machine for you?
Let us know and we can help you through the process and answer any questions you may have!
TMEZ
The future of Embroidery
Embroidery machines have been taken to the next level through the TMEZ. Backed with all the power of Tajima the TMEZ-KC takes the embroidery industry and its users by storm. This feature-packed machine is your business's next best investment, taking the guesswork out of each job.
KEY FEATURES
i-TM
Intelligent tension management or i-TM, automatically adjusts tensions for stitch type, garment thickness, and presser foot height.

DCP
The digitally-controlled presser foot can be adjusted for each needle bar to control pressure according to fabric.

Touch Panel
Setup and store designs in folders for easy management. Edit, resize and rotate designs at the machine. Intuitive production feedback, such as needle location during sewing, and more.

MODEL CONFIGURATIONS
No. of Heads | Head Interval | Cap | Tubular | Dimension |
---|---|---|---|---|
2 |
500mm |
3"x 14.2" |
17.3"x 16.5" |
89" W x 53.3" D x 68.1"H |
4 |
500mm |
3" x 14.2" |
17.3" x 11" |
100.5" W x 53.3" D x 68.5" H |
6 |
360mm/500mm |
3" x 14.2" |
17.3" x 11"/17.3" x 16.5" |
129.1"W x 53.3"D x 67"H/ 167.7"W x 53.3"D x 68.5"H |
8 |
360mm/500mm |
3"x 14.2" |
17.3"x 11"/17.3"x 16.5" |
157.5"W x 53.3"D x 68.5"H/207.1"W x 53.3"D x 68.5"H |
TMAR-KC
Interested in TMARK?
Let us be your guide, fill out the form below to have your local sales expert reach out to answer all your questions.
TMAR-KC
The future of Embroidery
The ultimate model born from the Tajima technology evolution. The Tajima Cylinder Arm Type TMAR-KC Series is born. The embodiment of Tajima's technologies with high production efficiency, ultimate quality, overwhelming durability and performance.
Technology for Elaborate Embroidery Detail!
A newly developed digitally-controlled presser foot that can adjust its bottom dead center and each stroke for each needle bar (color change) has been specifically designed for the TMAR-KC Series. Quickly and electronically control the height of the presser foot to provide the precise presser foot height for specific materials. Great for delicate materials such as silk or leather and significantly improves production of 3D Puffy Foam.
EASY Maintenance!
By introducing the crank drive, a new driving system, into the embroidery machine head, overwhelming durability has been realized. Also, maintenance has become simpler, and the lubricating frequency has been reduced to one-twentieth (once in 6 months)
Touch-Operation Display!
This display is equipped with an intuitive, easy-to-use operation panel with easily identifiable icons and a high-capacity memory that can store up to 40 million stitches or 650 designs
KEY FEATURES
Direct Head Controls
Various operation switches are located on the each head. Since all of the main functions of the operation panel can be manipulated in front of each head, the working efficiency of operators has been improved.
Touch Screen Panel
12.1-inch TFT touch panel
The large monitor allows intuitive operation of the panel.
DCP
Digitally controlled presser food can be adjusted for each needle according to the product thickness. When the needle moves up the presser foot lags behind to reduce fabric flutter.
MODEL CONFIGURATIONS
No. of Heads | Head Interval | Cap | Tubular | Dimension |
---|---|---|---|---|
2 |
500mm |
3" x 14.2" |
17.3" x 16.5" |
89"W x 54"D x 69" H |
4 |
500mm |
3" x 14.2" |
17.3" x 16.5" |
129"W x 54"D x 69"H |
6 |
360mm/500mm |
3" x 14.2" |
17.3" x 11"/17.3" x 16.5" |
130"W x 54" D x 69" H/168"W x 54" D x69" H |
8 |
360mm/500mm |
3" x 14.2" |
17.3" x 11"/ 17.3"x 16.5" |
158"W x 54" D x 69" H/207"W x 54"D x 69"H |
Want to know more about TFMX?
Inquire below to have one of our expert sales representatives reach out and guide you.
TFMX-IISC
Series
KEY FEATURES
Versatile Cap Driver
Each individual cap driver incorporate a lower stabilization shaft and a third locking pin to achieve higher quality embroidery run at higher speeds

Take-Up Lever Guard
Covers mounted over the take-up levers prevent thread from tangling during high-speed production and improved all around safety.

Thread Take-Up Spring
The take-up spring picks up excess thread and stabilizes the balance of upper and lower threads at high speed while improving thread tension.

MODEL CONFIGURATIONS
No. of Heads | Head Interval | Cap | Tubular | Dimension |
---|---|---|---|---|
2 |
500 mm |
3"x 14.2" |
17.3"x 16.5" |
73"W x 50" D x 65"H |
4 |
500 mm |
3" x 14.2" |
17.3" x 16.5" |
112"W x 50"D x 67"H |
6 |
360 mm/500mm |
3" x 14.2" |
17.3" x 11"/17.3" x 16.5" |
114"W x 50"D x 67"H/ 154"W x 50"D x 67"H |
8 |
360mm / 500mm |
3"x 14.2" |
17.3"x 11"/17.3"x 16.5" |
144"W x 54"D x 69"H/193"W x 54"D x 69"H |

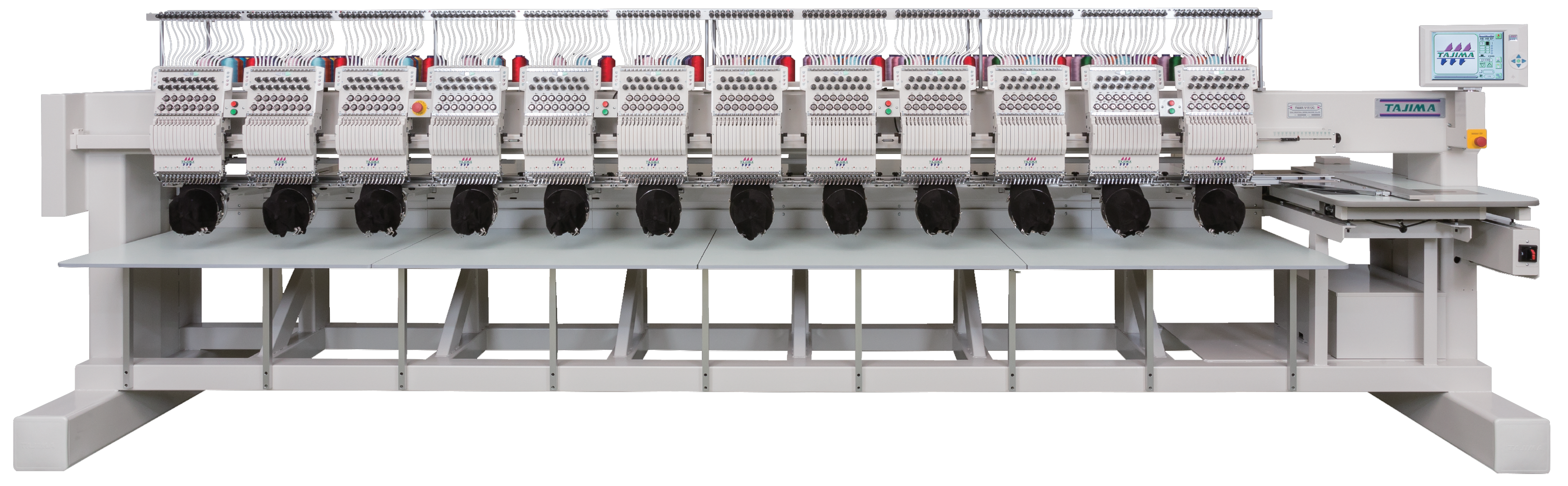

TMAR-VC1512
If you are doing high volume embroidery, the Tajima TMAR-VC (TMAR-V1512C) is a state-of-the-art multihead embroidery machine that delivers consistent, trouble-free sewing for maximum output. With its digitally controlled presser foot that adjusts for the thickness of the fabric being sewn, you are assured higher quality, less thread breaks, and overall smoother performance than you have ever experienced. The Tajima TMAR-VC (TMAR-V1512C) is the perfect machine for specialty fabrics and applications such as caps and three-dimensional foam.

TMCP
This series is based on the arm bed structure for lock stitch sewing machines and is the optimum for embroidery on finished products like T-shirts, caps or pant legs. Frames can be exchanged with ease to meet urgent orders. This series, having superior cost performance, provides you with more comfort to meet the customers' needs. Also available in multiple configurations.
.png?width=1000&height=439&name=TMCP-VF-(small-1).png)
TMCR
A step up from the TMCP Series, the TMCR Series has brought both high quality and cost reduction to reality, and added the same quality control guarantee for the most sophisticated garments and materials such as silk, leather, puff foam, and more. Innovative technologies like the digital presser foot (DCP) and fine stitch mode put high-end decorations in closer reach on a large scale.
